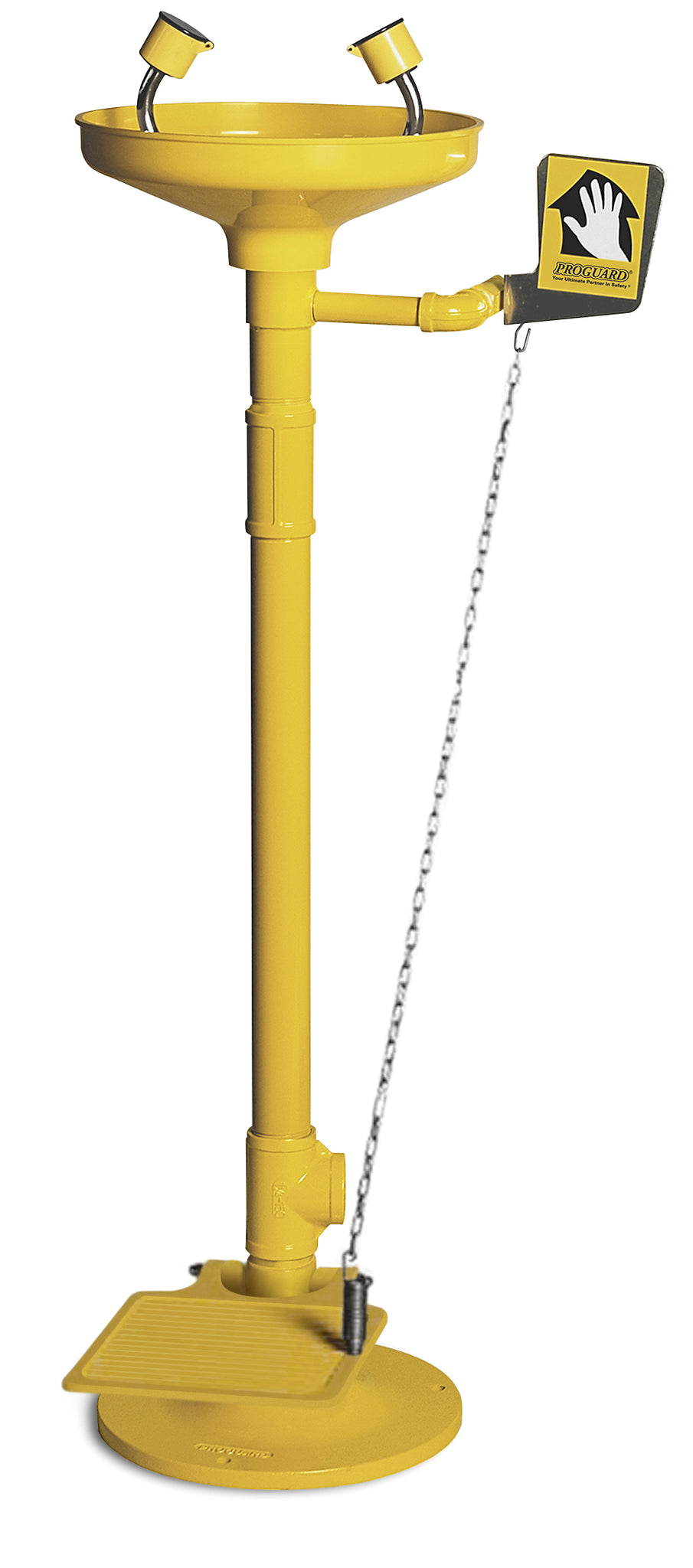

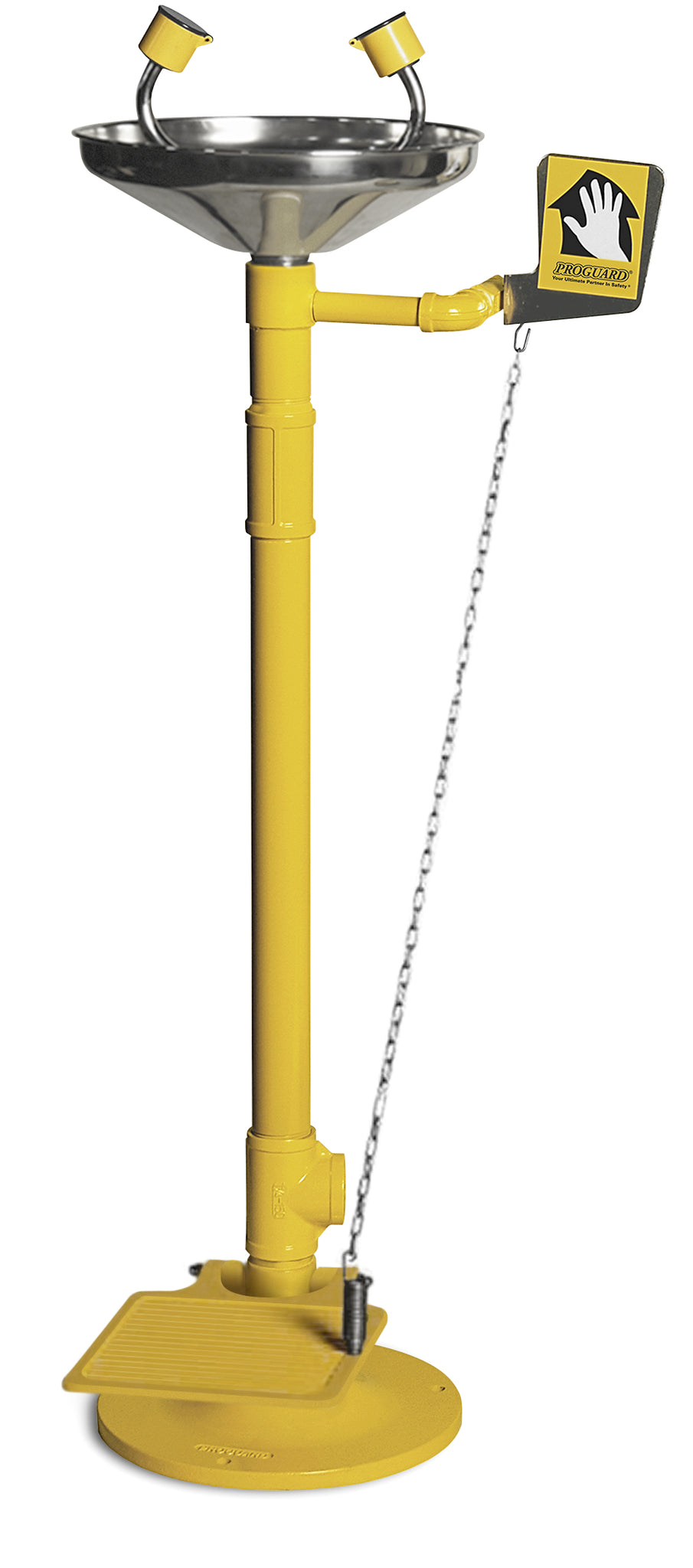

Pedestal Mounted Eyewash With Foot Pedal
Product Code: PG 5070 / PG 5070 SS
Features:
- These unit work very well in any environment.
- Can be mounted onto the floor and operated either by hand or by foot.
- The eyewash sprayheads uses soft-flow aerators and automatic pressure compensating valve.
Standard Fixtures:
| Eyewash Bowl |
PG 5070 - 280mm (11") bowl is injection moulded in chemical resistant ABS in bright yellow colour.
|
| Eyewash Assembly | Stainless steel with ABS sprayheads assembly with twin, soft-flow eyewash heads and instant flip-open protective dust cover. The built in automatic pressure compensating valve assures safe steady flow under varying water supply conditions. Sprayheads also include a filter to protect user against particles from the water flow which may be damaging to the eyes and face. |
| Pedestal | 250mm (10") aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow. |
| Control Valve | Stainless Steel ½' IPS valve that stay open until manually closed. Control valve is operated by a large, highly visible stainless steel push-plate. |
| Pipe and Fitting | ½" and ¼" IPS stainless steel galvanized iron pipe epoxy powder coated to bright yellow colour. |
| Waste | 1 ¼" IPS tail piece |
| Water Supply | ½" IPS |
| Signage | Eyewash |
